AWRM is an easy-to-use and low cost calibration solution for tunable lasers. By simply illuminating the input aperture of the AWRM with the beam of the laser subject to calibration, either a digital, analog, or optical output is provided back to the wavelength controller with which to tune the laser device. Accuracy will depend on wavelength and laser type. For conventional tunable semiconductor lasers, typical accuracy of a few picometers will be limited by Doppler/Lorentz broadening. When integrated in more sophisticated configurations involving, for example, saturation spectroscopy, accuracy levels in the femtometer range could be reached.

AWRM Reference Wavelengths, nm
387.615	614.306	706.721	772.376	823.163
404.414	621.728	760.155	780.027	840.919
404.721	633.443	763.511	785.482	852.113
420.067	640.225	766.49	794.76	852.113
420.179	670.776	769.454	810.437	894.347
557.029	670.791	769.896	811.531	979.97

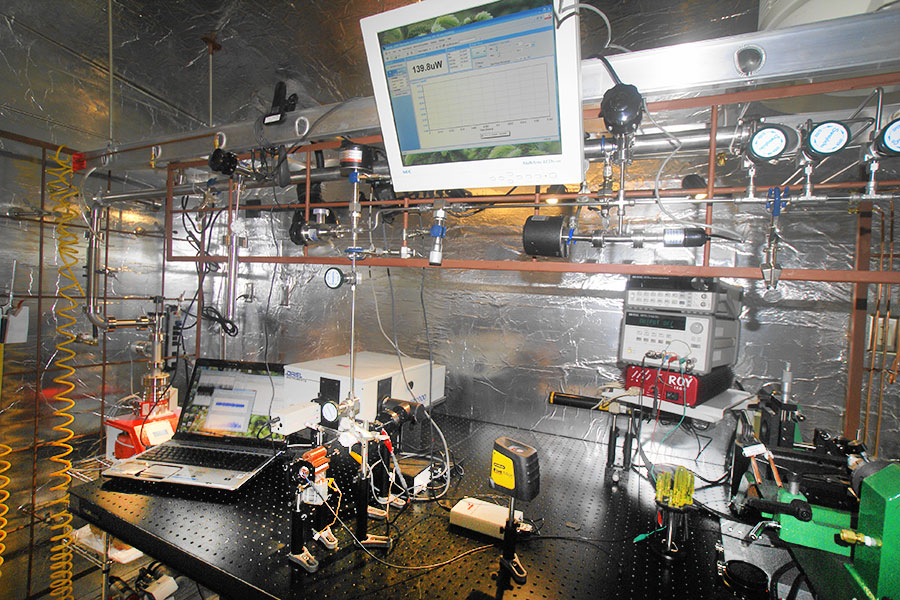

The team at Lambdanetics has extensive experience in the development of instrumentation used in industrial process control, including spectrometers (Deep UV, FTIR, VRDS) and detector systems. Capabilities include hardware design, system-level programming (kernel), integration capability through FPGA, and hardware interfacing in Windows, MATLAB, and HTML-5. Staff will be available to assist instrument manufacturers in effectively adapting IPSSL technology to their needs. A considerable amount of supporting test equipment, bench-top prototyping apparatus, and UHV material handling is also available in a Class 10,000 clean room.
